Dedicated vs Shared GPU Memory: What the Difference Means for Your PC

Dedicated GPU memory is the fast video memory (VRAM) built right onto your graphics card. Shared GPU memory is a chunk of your normal system RAM that the card is allowed to borrow when its own memory fills up. The dedicated kind is the memory that does the real work. The shared kind is a slower backup, and your PC only leans on it when it has to.

If you opened Task Manager, saw both numbers plus a third one called “GPU memory,” and felt confused, you are in the right place. Here is what each one means, why the gap between them is so large, and when the shared number is worth worrying about.

What is dedicated GPU memory (VRAM)?

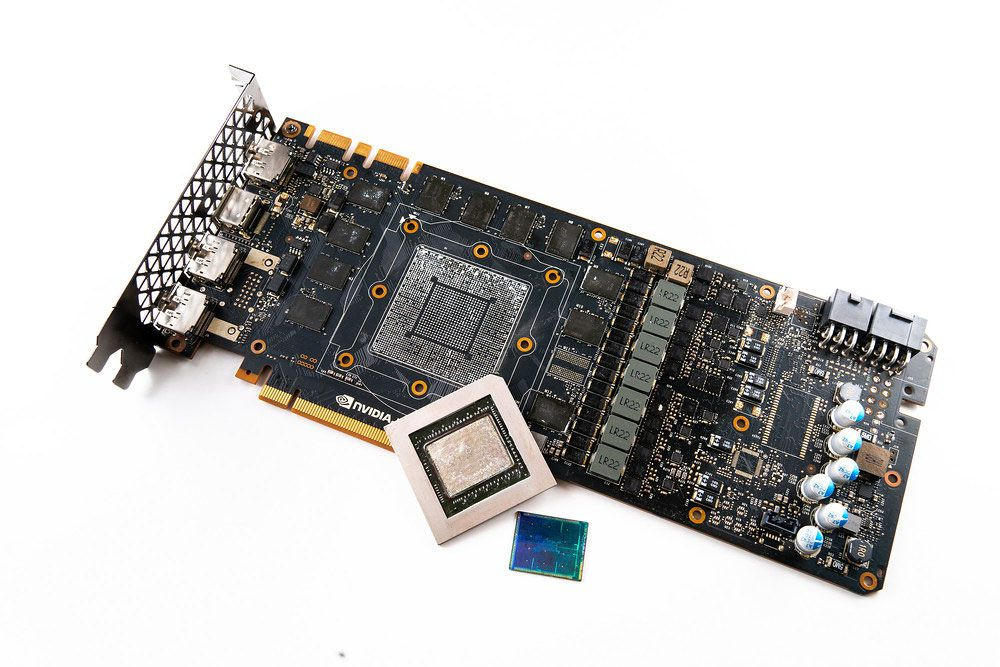

Dedicated GPU memory is memory physically mounted on the graphics card, sitting right next to the GPU chip. It is reserved for the GPU alone. Nothing else on your system gets to use it.

This is where the card keeps the data it needs every single frame: textures, the image it is building, depth buffers, and the working data for any GPU calculations. Most modern cards use a memory type called GDDR6 or GDDR6X, wired to the GPU over a wide, fast connection.

The key word is fast. Because this memory is soldered next to the chip and built for the way GPUs read data, it moves information at enormous speed. A card like the RTX 4090 can read its own VRAM at thousands of gigabytes per second. That speed is the whole point of a graphics card, and it is why the amount of VRAM you have sets a hard ceiling on what your GPU can do smoothly.

What is shared GPU memory?

Shared GPU memory is part of your regular system RAM, the same RAM your programs use, set aside so the graphics card can borrow it when its dedicated VRAM is full. The graphics card reaches this memory across the connection that links it to the rest of the PC, called the PCIe bus.

On Windows, this happens on its own. You do not turn it on or manage it. When a game or app asks for more graphics memory than the card physically has, Windows and the graphics driver quietly start moving data into system RAM so the program keeps running instead of crashing.

By default, Windows lets the GPU borrow up to about half of your total system RAM as shared memory. So a PC with 16GB of RAM may show roughly 8GB of shared GPU memory available. That number is a ceiling, not memory that is being used. Most of the time the “in use” figure sits near zero, because your card only taps it as a last resort.

Dedicated vs shared GPU memory at a glance

Here is the short version of how the two compare.

Why is shared memory so much slower?

The speed gap is not small. It comes down to two things: distance and design.

First, distance. Dedicated VRAM sits inches from the GPU on the same board. Shared memory lives in your RAM slots on the motherboard, and the GPU has to reach it across the PCIe bus. That round trip adds delay to every request.

Second, design. VRAM is built for the way a GPU reads data, which is wide and parallel. System RAM is built for the CPU, which reads in a different pattern. So even setting distance aside, system RAM simply cannot feed the GPU at the rate VRAM can.

The numbers make the gap obvious. Fast DDR5 system RAM moves data at roughly 50 to 100 gigabytes per second. Dedicated VRAM on a modern card runs from about 1,000 to several thousand gigabytes per second. That is often a 20 to 100 times difference. When your graphics data spills from VRAM into shared memory, it is like a highway suddenly narrowing to a single lane.

There is a delay cost too, not just a bandwidth cost. Every time the GPU needs a piece of data that now lives in system RAM, it has to send a request across the bus and wait for the answer to travel back. In a game pushing 60 frames every second, the GPU is making millions of these requests, and small waits pile up fast into visible stutter. That is why the slowdown feels jerky rather than just generally slower.

How much dedicated VRAM do you actually need?

Since dedicated memory is the number that matters, the natural next question is how much of it is enough. The honest answer depends on what you do and the resolution you run, but a few rough guides hold up well.

For 1080p gaming, 8GB of VRAM is the comfortable baseline today, and many games will still run on less. For 1440p, 12GB gives you more headroom as games and texture packs grow heavier. For 4K gaming, or for serious video editing and 3D work, 16GB or more keeps you safely inside dedicated memory in demanding scenes.

Creative apps can be hungrier than games. Video editors holding several layers of high-resolution footage, and 3D programs loading large scenes, can fill VRAM quickly. AI image and video tools are hungrier still, since the model itself has to fit in memory. If you run those, more dedicated VRAM pays off directly, because the moment your work spills into shared memory the slowdown is immediate.

These are starting points, not strict rules. A lighter game at 4K may sit happily in 8GB, while a heavily modded game at 1080p can blow past it. The way to know your own situation is to watch the numbers in Task Manager while you actually use your machine, which is what the next sections cover.

How to read the three numbers in Task Manager

Open Task Manager (press Ctrl, Shift, and Esc together), click the Performance tab, then click your GPU. In the lower right you will see three memory values, which the Microsoft DirectX team’s writeup on GPUs in Task Manager breaks down in detail. Here is what each one is telling you.

• Dedicated GPU memory: the VRAM physically on your card. This is your real graphics memory and the number that matters most.
• Shared GPU memory: the maximum amount of system RAM the GPU is allowed to borrow. Usually about half your total RAM. This is a limit, not current usage.
• GPU memory: simply the two added together. This is why a 4GB card can show a large total like 12GB. That total does not mean your card has 12GB of fast memory. It has 4GB, plus permission to borrow the rest slowly.

The line to watch is the “in use” figure next to shared memory. If it stays near zero, everything is fine and your card is living comfortably inside its own VRAM. If it climbs during a game, your card has run out of dedicated memory and is now borrowing slow RAM to cope.

When does shared GPU memory actually hurt?

Seeing shared memory listed in Task Manager is normal and not a problem by itself. The trouble starts only when your system is actively using a lot of it during demanding work.

In light use, such as browsing, video playback, or office apps, the borrowing is small and you will never feel it. In heavy use like gaming or video editing, leaning on shared memory is where the pain shows up. Frame rates drop, the picture stutters, and loading takes longer.

The drop is sharp rather than gradual. A game running fully inside VRAM might hold a smooth 60 frames per second. Once it overflows into shared memory, that same scene can fall toward 45 frames per second with visible hitching. Heavy spilling can drop performance by 30 to 50 percent. It is a cliff, not a gentle slope, because the GPU is now waiting on memory that is many times slower than what it expects.

A simple rule: if dedicated VRAM usage is pinned near 100 percent and shared memory usage is climbing while you play, your card has run short on memory for that workload. That is the signal to lower a setting or two.

Integrated graphics is a different story

Everything above assumes a discrete graphics card, the separate kind with its own VRAM. Integrated graphics, the kind built into many laptop and budget desktop processors, works differently.

Integrated graphics has no dedicated VRAM of its own. It uses system RAM as its main memory pool from the start. So on those machines, shared memory is not an emergency backup. It is the normal way the graphics chip works, which is part of why integrated graphics suits everyday tasks but struggles with demanding games.

One useful tip for integrated graphics: because it depends on system RAM speed, running your RAM in dual channel (two sticks instead of one) can noticeably improve graphics performance. That trick does little for a discrete card, which has its own fast memory, but it can make a real difference on an integrated setup.

How to rely on shared memory less

You cannot add dedicated VRAM to a card you already own. It is soldered on and fixed. On laptops you cannot swap it at all, and on desktops the only real way to get more is a new graphics card with a larger VRAM number. Still, you can reduce how often your system reaches for slow shared memory.

• Lower the heaviest settings. Texture quality and resolution eat the most VRAM. Dropping textures from Ultra to High, or gaming at 1080p instead of 1440p, often pulls you back inside your card’s memory.
• Close background apps. Browsers with many tabs, chat overlays, and other programs all use graphics memory. Shutting them frees room for your game.
• Turn off or lower frame generation and high-res texture packs. These features look great but demand extra VRAM, which pushes you toward the overflow.
• Add system RAM if you use integrated graphics. More RAM, ideally in dual channel, directly helps an integrated chip since that RAM is its working memory.
• Keep graphics drivers updated. Driver updates from your card’s maker often improve how memory is managed, which can smooth out borderline cases.

If you regularly run out of VRAM in the games or apps you care about, that is the honest sign you have outgrown your card, and a model with more dedicated memory is the only fix that truly solves it. For the exact memory size of a specific card, the maker’s own spec page, such as NVIDIA’s GeForce graphics card pages, lists it clearly.

Frequently asked questions

Is shared GPU memory bad?

No, shared GPU memory is not bad. It is a safety feature that keeps programs running when your VRAM fills up. It only causes problems, like stutter and frame drops, when your system has to use a lot of it during heavy gaming or editing.

Can I increase my dedicated GPU memory?

Not really. Dedicated VRAM is fixed on the graphics card and cannot be added to. On a desktop, the only true way to get more is a new card with a higher VRAM amount. On laptops, it is soldered and cannot be changed at all.

Why is my total GPU memory higher than my graphics card’s VRAM?

Because Task Manager adds your dedicated VRAM and your shared memory together into one “GPU memory” total. A 4GB card can show 12GB total, but it still only has 4GB of fast memory plus permission to borrow slow system RAM.

How much shared GPU memory should I have?

You do not choose it directly. Windows sets it to about half your system RAM automatically. More is not better, since it is only a slow fallback. Having more dedicated VRAM matters far more than having more shared memory.

Does shared GPU memory use my RAM?

Yes. Shared GPU memory is your system RAM, set aside for the graphics card to borrow when needed. When the GPU uses it, that RAM is not available to your other programs, which is one reason heavy use can slow the whole system.

Conclusion

Dedicated GPU memory is the fast VRAM on your graphics card and the number that decides how well demanding games and apps run. Shared GPU memory is slower system RAM your card borrows only when VRAM runs out, so it is a safety net, not an upgrade. Watch the shared “in use” figure: near zero is healthy, climbing during a game means you are short on VRAM. The fix is to lower heavy settings, or move to a card with more dedicated memory.
